Phenolic Resin

• Chemical stability of phenolic resin impregnated graphite

Graphite material properties

• Graphite material: fine-grain graphite material such as Japan Daikin, domestic Bayi carbon, continental carbon and other isostatic graphite materials According to the pore distribution and pore volume of different materials, suitable materials for graphite parts, heat exchanger blocks (tubes, tube sheets), hydrogen chloride synthesis equipment, and organic chlorination reactors are selected.

New graphite stirred tank

SZG graphite evaporation tank

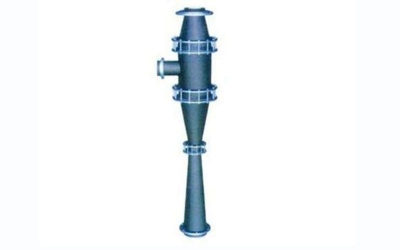

Graphite jet pump

• Application range Graphite has excellent corrosion resistance and heat resistance, is suitable for heat transfer process of corrosive media, and is resistant to acids, alkalis and other corrosive media. SPZ graphite jet mixer is mainly used for vacuuming or mixing of two materials, mainly suitable for high temperature corrosive environment.

Graphite centrifugal pump

• The graphite pump is equipped with a power unit (typically an electric motor) for conveying or pumping corrosive fluids. Compared with other non-metallic pumps, the advantage is that graphite not only has excellent corrosion resistance, but also has high thermal conductivity and low expansion coefficient. Therefore, graphite pumps have obvious advantages in places where there is strong corrosivity and there may be rapid cooling and rapid heat.

Graphite pipe fittings

• Our company can process all kinds of graphite non-standard parts, such as graphite pipes and graphite electrode plates, according to the needs of users. Including elbows (45 degrees and 90 degrees), tees, four-way pipes, inner joints, outer joints, pipe end caps, cocks, pipe flanges, pipe sight glasses and pipe compensators,

Rectangular block-hole graphite heat exchanger

• Structure and features: The rectangular block-type graphite heat exchanger is composed of a number of cubic and rectangular graphite heat exchange blocks, upper and lower graphite heads, metal cover plates and metal side covers on both sides, and the parts are sealed by gaskets.

Block-hole heat exchanger

• Structure and features: The series is sealed with Teflon and equipped with a pressure spring for automatic expansion and contraction. Two sets of non-communicating flow passages are drilled on the graphite block, and the two groups are at right angles, and two different fluids pass through the two sets of flow passages for heat exchange purposes. The system adopts advanced processing technology and has the advantages of high heat transfer efficiency,
